Υψίκορμος IPE |
|
 |
|
|
|
|
|
Υψίκορμοι μεταλλικοί δοκοί ΙΡΕ (DIN 1025.5).
|

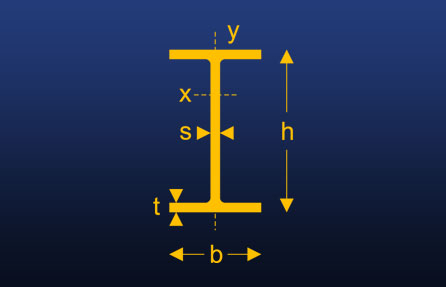

Διαστάσεις |
Διατομή F (cm2) |
Βάρος G (kg/m) |
ροπή αντίστασης |
επιτρεπόμενη φόρτιση
άνοιγμα στήιξης |
|
h (mm) |
b (mm) |
s (mm) |
t (mm) |
|
|
Wx (cm3) |
Wy (cm3) |
1.0 |
1.5 |
1.75 |
2.0 |
2.5 |
3.0 |
4.0 |
|
80 |
46 |
3.8 |
5.2 |
7.64 |
6.00 |
20.0 |
3.69 |
2560 |
1138 |
836 |
640 |
410 |
284 |
160 |
|
100 |
55 |
4.1 |
5.7 |
10.30 |
8.10 |
34.2 |
5.79 |
4378 |
1946 |
1429 |
1094 |
700 |
486 |
274 |
|
120 |
64 |
4.4 |
6.3 |
13.20 |
10.40 |
53.0 |
8.65 |
6784 |
3015 |
2215 |
1696 |
1085 |
754 |
424 |
|
140 |
73 |
4.7 |
6.9 |
16.40 |
12.90 |
77.3 |
12.30 |
9894 |
4398 |
3231 |
2474 |
1583 |
1099 |
618 |
|
|
|
|
|
|
|
|
|
2.0 |
2.5 |
3.0 |
3.5 |
4.0 |
5.0 |
6.0 |
|
160 |
82 |
5.0 |
7.4 |
20.10 |
15.80 |
109.0 |
16.70 |
3488 |
2232 |
1550 |
1139 |
872 |
558 |
386 |
|
180 |
91 |
5.3 |
8.0 |
23.90 |
18.80 |
146.0 |
22.20 |
4672 |
2990 |
2076 |
1526 |
1168 |
748 |
519 |
|
200 |
100 |
5.6 |
8.5 |
28.50 |
22.40 |
194.0 |
28.50 |
6208 |
3973 |
2759 |
2027 |
1552 |
993 |
690 |
|
220 |
110 |
5.9 |
9.2 |
33.40 |
26.20 |
252.0 |
37.30 |
8064 |
5161 |
3584 |
2633 |
2016 |
1290 |
896 |
|
|
|
|
|
|
|
|
|
3.0 |
4.0 |
5.0 |
6.0 |
7.0 |
8.0 |
10.0 |
|
240 |
120 |
6.2 |
9.8 |
39.10 |
30.70 |
324.0 |
47.30 |
4608 |
2592 |
1659 |
1152 |
846 |
648 |
415 |
|
270 |
135 |
6.6 |
10.2 |
45.90 |
36.10 |
429.0 |
62.10 |
6101 |
3432 |
2196 |
1525 |
1121 |
858 |
549 |
|
300 |
150 |
7.1 |
10.7 |
53.80 |
42.20 |
557.0 |
80.50 |
7922 |
4456 |
2852 |
1980 |
1455 |
1114 |
713 |
|
|
|
|
|
|
|
|
|
5.0 |
6.0 |
8.0 |
10.0 |
12.0 |
14.0 |
16.0 |
|
330 |
160 |
7.5 |
11.5 |
62.60 |
49.10 |
713.0 |
98.50 |
3651 |
2535 |
1426 |
913 |
634 |
466 |
357 |
|
360 |
170 |
8.0 |
12.7 |
72.70 |
57.10 |
904.0 |
123.00 |
4628 |
3214 |
1808 |
1157 |
804 |
590 |
452 |
|
400 |
180 |
8.6 |
13.5 |
84.50 |
66.30 |
1160.0 |
146.00 |
5939 |
4124 |
2320 |
1485 |
1031 |
758 |
580 |
|
450 |
190 |
9.4 |
14.6 |
98.80 |
77.60 |
1500.0 |
176.00 |
7680 |
5333 |
3000 |
1920 |
1333 |
980 |
750 |
|
|
|
|
|
|
|
|
|
7.0 |
8.0 |
10.0 |
12.0 |
14.0 |
16.0 |
18.0 |
|
500 |
200 |
10.2 |
16.0 |
116.0 |
90.70 |
1930.0 |
214.00 |
5042 |
3860 |
2471 |
1716 |
1260 |
965 |
762 |
|
550 |
210 |
11.1 |
17.2 |
134.0 |
106.00 |
2440.0 |
254.00 |
6374 |
4880 |
3123 |
2169 |
1594 |
1220 |
964 |
|
600 |
220 |
12.0 |
19.0 |
156.0 |
122.00 |
3070.0 |
308.00 |
8020 |
6140 |
3930 |
2729 |
2005 |
1535 |
1213 |
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
