Στενός ΙΡΝ |
|
 |
|
|
|
|
|

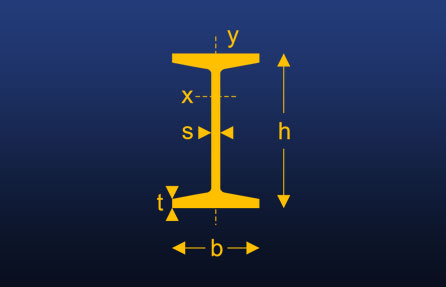

Στενοί μεταλλικοί δοκοί τύπου ΙΡΝ (DIN 1025, 1).
|
Διαστάσεις |
διατομή F (cm2) |
βάρος G (kg/m) |
ροπή αντίστασης |
επιτρεπόμενη φόρτιση
άνοιγμα στήιξης |
|
h (mm) |
b (mm) |
s (mm) |
t (mm) |
|
|
Wx (cm3) |
Wy (cm3) |
1.0 |
1.5 |
2.0 |
2.25 |
2.5 |
3.0 |
4.0 |
|
80 |
42 |
3.9 |
5.9 |
7.57 |
5.95 |
19.5 |
3.00 |
2496 |
1109 |
624 |
493 |
399 |
277 |
146 |
|
100 |
50 |
4.5 |
6.8 |
10.60 |
8.32 |
34.2 |
4.88 |
4378 |
1946 |
1094 |
865 |
700 |
486 |
274 |
|
120 |
60 |
5.1 |
7.7 |
14.20 |
11.20 |
54.7 |
7.41 |
7002 |
3112 |
1750 |
1383 |
1120 |
778 |
438 |
|
140 |
68 |
5.7 |
8.6 |
18.20 |
14.40 |
81.9 |
10.70 |
10483 |
4659 |
2621 |
2071 |
1677 |
1165 |
655 |
|
|
|
|
|
|
|
|
|
2.0 |
2.5 |
3.0 |
3.5 |
4.0 |
5.0 |
6.0 |
|
160 |
74 |
6.3 |
9.5 |
22.80 |
17.90 |
117.0 |
14.80 |
3744 |
2396 |
1664 |
1223 |
936 |
599 |
416 |
|
180 |
82 |
6.9 |
10.4 |
27.90 |
21.90 |
161.0 |
19.80 |
5152 |
3297 |
2290 |
1682 |
1288 |
824 |
572 |
|
200 |
90 |
7.5 |
11.3 |
33.40 |
26.30 |
214.0 |
26.00 |
6848 |
4383 |
3044 |
2236 |
1712 |
1096 |
761 |
|
220 |
98 |
8.1 |
12.2 |
39.50 |
31.10 |
278.0 |
33.10 |
8896 |
5693 |
3954 |
2905 |
2224 |
1423 |
988 |
|
|
|
|
|
|
|
|
|
4.0 |
4.5 |
5.0 |
6.0 |
7.0 |
8.0 |
10.0 |
|
240 |
105 |
8.7 |
13.1 |
46.10 |
26.20 |
354.0 |
41.70 |
2832 |
2238 |
1812 |
1259 |
925 |
708 |
453 |
|
260 |
113 |
9.4 |
14.1 |
53.30 |
41.90 |
442.0 |
51.00 |
3536 |
2794 |
2263 |
1572 |
1155 |
844 |
566 |
|
280 |
119 |
10.1 |
15.2 |
61.00 |
48.00 |
542.0 |
61.20 |
4336 |
3426 |
2775 |
1927 |
1421 |
1084 |
694 |
|
300 |
125 |
10.8 |
16.2 |
69.00 |
54.20 |
653.0 |
72.20 |
5224 |
4128 |
3343 |
2322 |
1706 |
1306 |
836 |
|
|
|
|
|
|
|
|
|
5.0 |
6.0 |
8.0 |
10.0 |
12.0 |
14.0 |
16.0 |
|
320 |
131 |
11.5 |
17.3 |
77.70 |
61.20 |
782.0 |
84.70 |
4004 |
2780 |
1564 |
1001 |
695 |
511 |
391 |
|
340 |
137 |
12.2 |
18.3 |
86.70 |
68.10 |
923.0 |
98.40 |
4726 |
3282 |
1846 |
1181 |
820 |
603 |
462 |
|
360 |
143 |
13.0 |
19.5 |
97.00 |
76.20 |
1090.0 |
114.00 |
5581 |
3876 |
2180 |
1395 |
969 |
712 |
545 |
|
380 |
149 |
13.7 |
20.5 |
107.00 |
84.20 |
1260.0 |
131.00 |
6451 |
4480 |
2520 |
1613 |
1120 |
823 |
630 |
|
400 |
155 |
14.4 |
21.6 |
118.00 |
92.60 |
1460.0 |
149.00 |
7475 |
5191 |
2920 |
1869 |
1298 |
953 |
730 |
|
|
|
|
|
|
|
|
|
8.0 |
10.0 |
12.0 |
14.0 |
16.0 |
18.0 |
20.0 |
|
450 |
170 |
16.2 |
24.3 |
147.00 |
115.00 |
2040.0 |
203.0 |
4080 |
2611 |
1813 |
1332 |
1020 |
806 |
653 |
|
500 |
185 |
18.0 |
27.0 |
179.00 |
141.00 |
2750.0 |
268.0 |
5500 |
3520 |
2444 |
1796 |
1375 |
1086 |
880 |
|
550 |
200 |
19.0 |
30.0 |
212.00 |
166.00 |
3610.0 |
349.0 |
7220 |
4621 |
3209 |
5358 |
1805 |
1426 |
1155 |
|
600 |
215 |
21.6 |
32.4 |
254.00 |
199.00 |
4630.0 |
434.0 |
9260 |
5926 |
4116 |
3024 |
2315 |
1829 |
1482 |
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
