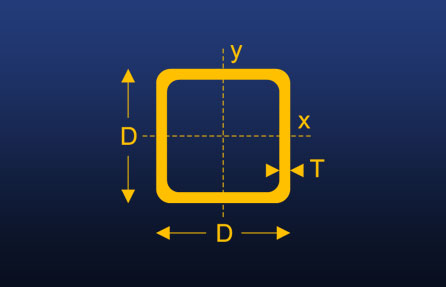

Κοιλοδοκοί τετράγωνοι (ISO 4200-1982).
|
διαστάσεις |
Τομή |
βάρος |
μεγέθη στατικής |
|
D (mm) |
T (mm) |
F (cm2) |
G kg/m |
J (cm4) |
i (cm) |
W (cm3) |
|
20 |
1.0 |
0.78 |
0.61 |
0.42 |
0.74 |
0.42 |
|
1.2 |
0.86 |
0.68 |
0.48 |
0.75 |
0.48 |
|
1.5 |
1.02 |
0.80 |
0.56 |
0.74 |
0.56 |
|
2.0 |
1.30 |
1.02 |
0.66 |
0.71 |
0.66 |
|
2.5 |
1.60 |
1.26 |
0.72 |
0.67 |
0.72 |
|
25 |
1.0 |
0.97 |
0.76 |
0.87 |
0.94 |
0.69 |
|
1.2 |
1.16 |
0.91 |
1.00 |
0.93 |
0.80 |
|
1.5 |
1.28 |
1.00 |
1.18 |
0.96 |
0.94 |
|
2.0 |
1.68 |
1.32 |
1.42 |
0.92 |
1.14 |
|
2.5 |
2.06 |
1.62 |
1.60 |
0.88 |
1.28 |
|
30 |
1.0 |
1.16 |
0.91 |
1.54 |
1.15 |
1.03 |
|
1.2 |
1.33 |
1.04 |
1.79 |
1.16 |
1.20 |
|
1.5 |
1.62 |
1.27 |
2.14 |
1.15 |
1.43 |
|
2.0 |
2.10 |
1.65 |
2.63 |
1.12 |
1.75 |
|
2.5 |
2.52 |
1.98 |
3.02 |
1.09 |
2.01 |
|
3.0 |
3.02 |
2.37 |
3.33 |
1.05 |
2.22 |
|
38 |
1.0 |
1.48 |
1.16 |
3.24 |
1.48 |
1.71 |
|
1.2 |
1.72 |
1.35 |
3.80 |
1.49 |
2.00 |
|
1.5 |
2.11 |
1.66 |
4.57 |
1.47 |
2.41 |
|
2.0 |
2.75 |
2.16 |
5.72 |
1.44 |
3.01 |
|
2.5 |
3.36 |
2.64 |
6.70 |
1.41 |
3.53 |
|
40 |
1.0 |
1.56 |
1.22 |
3.81 |
1.56 |
1.90 |
|
1.2 |
1.81 |
1.42 |
4.46 |
1.57 |
2.23 |
|
1.5 |
2.22 |
1.74 |
5.38 |
1.56 |
2.69 |
|
2.0 |
2.90 |
2.28 |
6.76 |
1.53 |
3.38 |
|
2.5 |
3.52 |
2.76 |
7.95 |
1.50 |
3.97 |
|
3.0 |
4.08 |
3.20 |
8.96 |
1.48 |
4.48 |
|
4.0 |
5.21 |
4.09 |
10.51 |
1.42 |
5.26 |
|
50 |
1.5 |
2.82 |
2.21 |
10.89 |
1.97 |
4.36 |
|
2.0 |
3.70 |
2.90 |
13.85 |
1.93 |
5.54 |
|
2.5 |
4.51 |
3.54 |
16.50 |
1.91 |
6.60 |
|
3.0 |
5.28 |
4.14 |
18.86 |
1.89 |
7.54 |
|
4.0 |
6.81 |
5.35 |
22.76 |
1.83 |
9.10 |
|
5.0 |
8.14 |
6.39 |
25.67 |
1.78 |
10.27 |
|
60 |
1.5 |
3.42 |
2.68 |
19.26 |
2.37 |
6.42 |
|
2.0 |
4.50 |
3.53 |
24.70 |
2.34 |
8.23 |
|
2.5 |
5.52 |
4.33 |
29.68 |
2.32 |
9.89 |
|
3.0 |
6.49 |
5.09 |
34.21 |
2.30 |
11.40 |
|
4.0 |
8.41 |
6.60 |
42.04 |
2.24 |
14.01 |
|
5.0 |
10.10 |
7.93 |
48.33 |
2.19 |
16.11 |
|
διαστάσεις |
Τομή |
βάρος |
μεγέθη στατικής |
|
D (mm) |
T (mm) |
F (cm2) |
G kg/m |
J (cm4) |
i (cm) |
W (cm3) |
|
70 |
1.5 |
4.00 |
3.14 |
31.10 |
2.79 |
8.89 |
|
2.0 |
5.30 |
4.16 |
40.11 |
2.75 |
11.46 |
|
2.5 |
6.52 |
5.12 |
48.48 |
2.73 |
13.85 |
|
3.0 |
7.69 |
6.04 |
56.23 |
2.70 |
16.07 |
|
4.0 |
10.00 |
7.85 |
69.97 |
2.65 |
19.99 |
|
5.0 |
12.10 |
9.50 |
81.50 |
2.60 |
23.29 |
|
80 |
2.0 |
6.10 |
4.79 |
60.88 |
3.16 |
15.22 |
|
2.5 |
7.52 |
5.90 |
73.91 |
3.13 |
18.48 |
|
3.0 |
8.89 |
6.98 |
86.11 |
3.11 |
21.53 |
|
4.0 |
11.60 |
9.11 |
108.13 |
3.05 |
27.03 |
|
5.0 |
14.10 |
11.07 |
127.17 |
3.00 |
31.79 |
|
90 |
2.0 |
6.90 |
5.42 |
87.81 |
3.57 |
19.51 |
|
2.5 |
8.52 |
6.69 |
106.96 |
3.54 |
23.77 |
|
3.0 |
10.10 |
7.93 |
125.04 |
3.52 |
27.79 |
|
4.0 |
13.20 |
10.36 |
158.14 |
3.46 |
35.14 |
|
5.0 |
16.10 |
12.64 |
187.33 |
3.41 |
41.63 |
|
5.5 |
17.70 |
13.89 |
200.54 |
3.37 |
44.56 |
|
100 |
2.5 |
9.52 |
7.47 |
148.64 |
3.95 |
29.73 |
|
3.0 |
11.25 |
8.83 |
174.24 |
3.94 |
34.85 |
|
4.0 |
14.80 |
11.62 |
221.59 |
3.87 |
44.32 |
|
5.0 |
18.10 |
14.21 |
264.00 |
3.82 |
52.80 |
|
5.5 |
19.90 |
15.62 |
283.44 |
3.77 |
56.69 |
|
6.0 |
21.15 |
16.60 |
301.73 |
3.78 |
60.35 |
|
120 |
2.5 |
12.50 |
9.81 |
261.86 |
4.58 |
43.64 |
|
3.0 |
13.70 |
10.75 |
308.21 |
4.74 |
51.37 |
|
4.0 |
18.00 |
14.13 |
395.20 |
4.69 |
65.87 |
|
5.0 |
22.10 |
17.35 |
474.83 |
4.64 |
79.14 |
|
5.5 |
24.30 |
19.08 |
511.99 |
4.59 |
85.33 |
|
6.0 |
26.00 |
20.41 |
547.43 |
4.59 |
91.24 |
|
140 |
2.5 |
14.66 |
11.51 |
421.59 |
5.36 |
60.23 |
|
3.0 |
16.10 |
12.64 |
497.62 |
5.56 |
71.09 |
|
4.0 |
21.20 |
16.64 |
641.77 |
5.50 |
91.68 |
|
5.0 |
26.10 |
20.49 |
775.67 |
5.45 |
110.81 |
|
5.5 |
28.70 |
22.53 |
838.89 |
5.41 |
119.84 |
|
6.0 |
30.76 |
24.15 |
899.69 |
5.41 |
128.53 |
|
150 |
2.5 |
15.71 |
12.33 |
521.40 |
5.76 |
69.52 |
|
3.0 |
17.10 |
13.42 |
616.12 |
6.00 |
82.15 |
|
4.0 |
22.80 |
17.90 |
796.41 |
5.91 |
106.19 |
|
5.0 |
28.10 |
22.06 |
964.83 |
5.86 |
128.64 |
|
5.5 |
30.90 |
24.26 |
1044.71 |
5.81 |
139.30 |
|
6.0 |
33.10 |
25.98 |
1121.77 |
5.82 |
149.57 |
